Updating Vision1 GCS Software (QGC)
Required prior to starting:
- Vision GCS charged to 50% or higher
- USB-A thumbstick (flash drive) loaded with GCS software see Vantage Robotics Vision GCS Flash Drive updater
- USB-A to USB-C adapter
GCS Update instructions
- Turn on Vision GCS
-
Log in to Vision GCS
- Password: Vantage1
- Insert the Vantage Robotics GCS update Flash Drive into the USB C port on the bottom side of the Vision GCS
-
After inserting the Vantage Robotics GCS update Flash Drive a dialog will appear
-

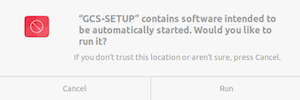

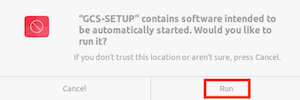

Tap “Run” when prompted to automatically start the “GCS-SETuP” application
-
Tap “Yes” when asked to proceed with the GCS update
-

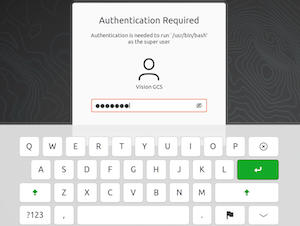

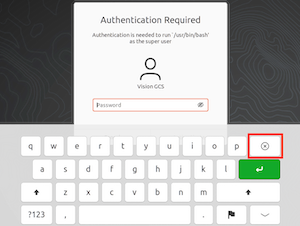

Tap the backspace key to activate the soft keyboard
-
Enter “Vantage1” in the Authentication Required dialog box
-

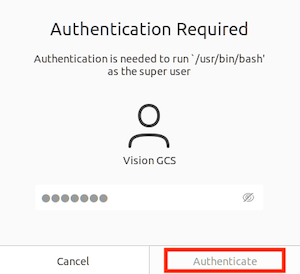

Tap the “Authenticate” button
-
A terminal window will appear with text automatically being added to the display with a “GCS Update” dialog window overlaid
-

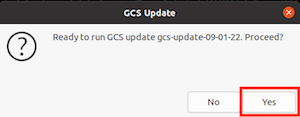

Tap “Yes” when the GCS Update dialog prompts you to Proceed

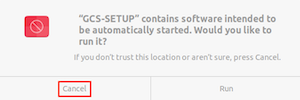

- Tap "Cancel" when prompted to run the GCS update installer
-

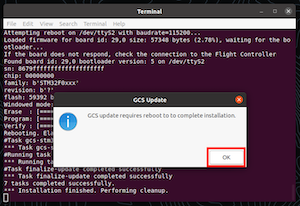

Tap “OK” when the dialog states that the update requires the GCS to reboot
- Once the GCS Reboots, Pair and connect Vesper to the GCS
